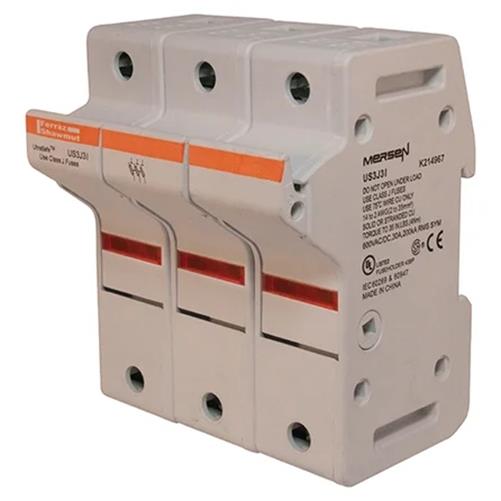

Mersen UltraSafe Modular 600 Volt Fuse Holders for Class J fuses introduce a new level of safety and ease for installing or replacing Class J fuses. UltraSafe holders qualify as “finger-safe to an IP20 grade of protection under IEC standards. The US3J accommodates 30A Class J or 22 x 58 mm French Ferrule* fuses. UltraSafe holders are available in compact 1, 2, or 3 pole units, with or without blown-fuse indicators in each pole. Multi-pole units can also be made up in the field by using the multiplepole Assembly Kits. All units have provisions for locking in the open position for safety during fuse changeouts or equipment servicing. US3J holders can be snap-mounted to 35 mm DIN-rail and they have a unique latch which will stay open to allow re-positioning of the holder in the future. UltraSafe body material is tough and durable polyamide.
| Manufacturer | Mersen |
| Ampere | 30A |
| Voltage Rating | 600V |
| Interrupt Rating | 200kA IR |
| Number of Poles | 3 |
| Class | J |
| Connector type | Pressure plate |
| Wire range | #2 to #14 (solid/stranded Cu) |
| Load-break disconnect | No |
| Approvals | UL, ROHS, CSA, IEC |
| Applications | 600 volt motors, transformers, lighting, heating, control circuits, general loads |
| Terminal screws | Phillips/slot head |
| Suggested screw torque | 35 in-lbs. |
| Datasheet | Product Specifications |
| Item Weight | 0.6486 kg |
