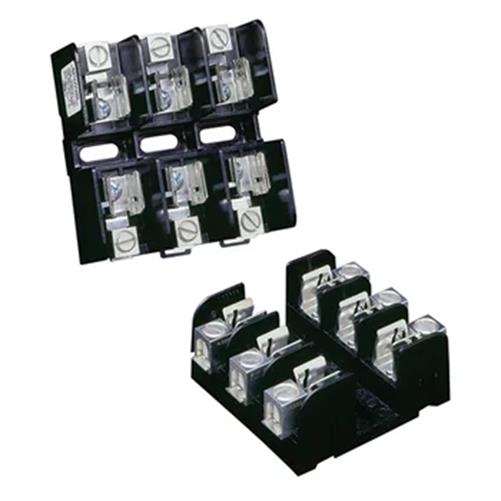

Mersen U710 series fuse holders feature open face styles. Each version is rated 750 volts and accommodates 22 x 58 mm fuses. Mersen U710 series holders feature Mersen's unique adderblock design which can be snapped onto 1-, 2-, or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. A choice of box, screw or pressure plate connectors is offered to fit a wide range of standard or solid copper wire. All versions have verified dielectric strengths in excess of 2500V. A patented built-in DIN-rail adapter on the U710 blocks adds further design versatiltiy. All fuse clips are made of high conductivity tin-plated copper with spring reinforced clips.
| Manufacturer | Mersen |
| Ampere | 100A |
| Voltage Rating | 750V |
| Interrupt Rating | 200kA IR |
| Number of Poles | 2 |
| Class | Semiconductor |
| Type | Box |
| Approvals | UL, RoHS, CSA |
| Datasheet | Product Specifications |
| Item Weight | 0.2404 kg |
