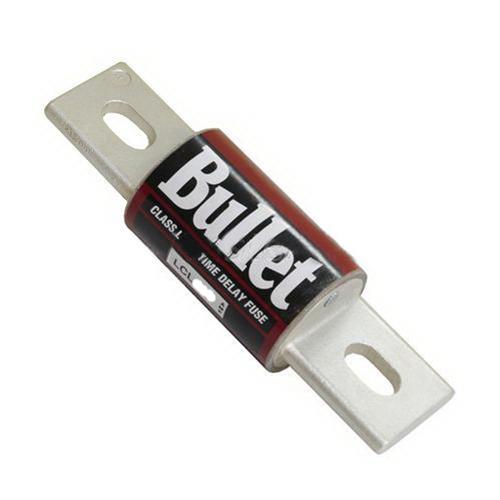

LCL general purpose copper link fuses. Copper links result in a minimum 5 second time-delay at 500% Amp rating. Current-limiting – provides component short-circuit protection. 200kAIR complies with NEC® Sections 110-9 in today’s large capacity systems. Selective coordination (blackout prevention) when sized per published coordination ratios. No fuse reducers required.
Other Names: LCL500, LCL 500 Amp, LCL-500, LCL 500A, LCL500A, LCL-500A, LCL 500
| Manufacturer | Edison |
|---|---|
| Ampere | 500A |
| Voltage Rating | 600V |
| Interrupt Rating | 200kA IR |
| Speed | Time-Delay |
| Class | Class L |
| Approvals | CE, UL, CSA |
| Datasheet | Product Specifications |
| Item Weight | 0.001 lb |
| Other names | LCL500, LCL 500 Amp, LCL-500, LCL 500A, LCL500A, LCL-500A, LCL 500 |
