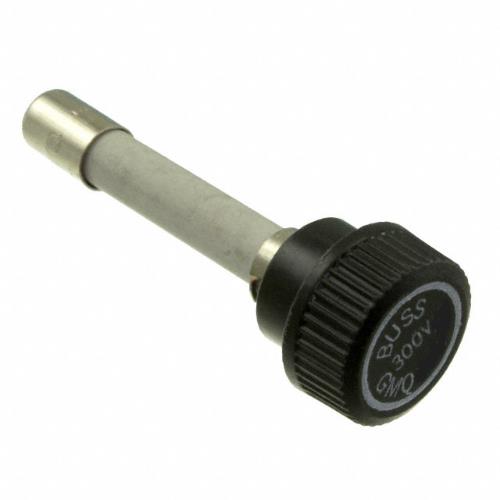

Size of type GMQ fuses varies with ampere ratings. Fuse and knob are an integral one-piece unit. There are no replacement knobs (caps). Units can be panel mounted with a separate steel clip. For the knockout hole (see above), choose #BK/A-104. For the keyhole punch type hole, choose #6374 for panels 0.043” to 0.062” thick, or #4909 for panels 0.030” to 0.042” thick. Do not put tension on line (rear) terminal of fuse holder. GMQ fuse mounts in type HLQ size rejection (size limiting) carrier (prevents overfusing). HLQ carrier comes with 6” of #18 red insulated solid copper wire attached to the line side. Customer inserts a #18 insulated solid copper wire into load side receptacle
| Manufacturer | Bussmann |
|---|---|
| Ampere | 2.5A |
| Voltage Rating | 300V |
| Interrupt Rating | 10,000 kA IR |
| Speed | time-delay |
| Class | in-line fuse |
| Approvals | UL, CSA, CE |
| Datasheet | Product Specifications |
| Item Weight | 0.02lbs |
