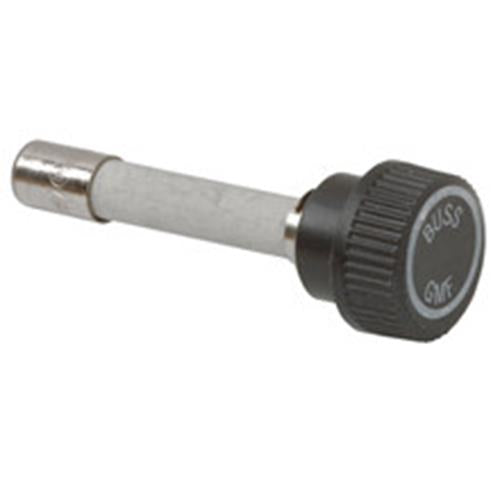

GMF-4

QUANTITY: 20

Bussmann GMF Series

HLR carrier comes with 6” of #18 red insulated solid copper wire attached to the line side. Customer inserts a #18 insulated solid copper wire into load side receptacle. Order part number HLR-2 to obtain 6” of #18 black insulated solid copper wire pre-installed in a load side receptacle. Order part number HLR-2L to obtain 6” of #18 black insulated solid copper wire packaged loose (un-installed). An alternative to the HLR fuseholder is the A fuseholder. The A fuseholder comes WITHOUT leads. The customer inserts #18 insulated solid copper wire into the line side receptacle as well as into the load side receptacle. It has the same body dimensions, utilizes the same mounting hole, and takes the same mounting clips as the HLR. The A fuseholder is UL Recognized, 10A, 300Vac, Guide IZLT2, File E14853 and CSA Certified, 10A, 300Vac, Class 6225-01, File 47235. Fuse and knob are an integral one-piece unit. There are no replacement knobs (caps). Units can be panel mounted with a separate steel clip. For the knockout hole (see above), choose #BK/A-104. For the keyhole punch type hole, choose #6374 for panels 0.043” to 0.062” thick, or #4909 for panels 0.030” to 0.042” thick. Do not put tension on line (rear) terminal of fuseholder

Manufacturer Bussmann
Ampere 4A
Voltage Rating 300V
Interrupt Rating 10,000 kA IR
Speed fast-acting
Class time-delay
Approvals UL, CSA, CE
Datasheet Product Specifications
Item Weight 0.51 lbs
