SIBA

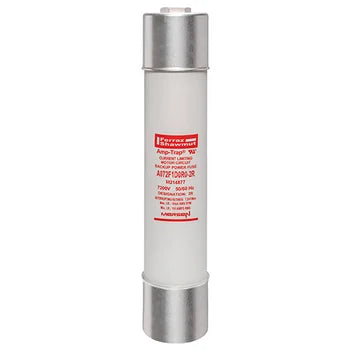

Mersen R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers. R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses come with a 3 (size D) or 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clips. Back-Up R-Rated Medium Voltage Fuse 7200VAC 5R Mounting: Ferrule Visual Indicator Amp-Trap®
| Manufacturer | Mersen |
| Ampere | 150 A |
| Voltage Rating | 7200 V |
| Interrupt Rating | 50kA IR |
| Speed | Time-delay |
| Class | Medium Voltage R-Rated Fuse |
| Approvals | UL, RoHS |
| Datasheet | Product Specifications |
| Item Weight | 4.9895 kg |
